Ford dashboard symbols and meanings can help you understand what your vehicle is telling you before a small issue becomes a serious problem. Some lights indicate that a feature is working normally, while others warn about low oil pressure, engine overheating, brake problems, tire pressure, or electrical faults. Knowing what each warning means helps you make safer decisions on the road.
The symbols displayed on your dashboard can vary depending on your Ford model, production year, engine type, and available equipment. A Ford Fiesta may show different indicators from a Ford Ranger, while older vehicles from 2007 or 2012 may have a different instrument cluster from newer 2024 and 2025 models.
In this guide, you will learn how to identify common Ford warning lights, understand their meanings, and find model-specific information for different years. It also covers UK dashboard indicators, modern driver-assistance features, diesel warnings, and practical steps to take when an unfamiliar symbol appears.
Understanding Ford Dashboard Warning Light Colors
Before identifying individual Ford dashboard symbols, learn what their colors generally indicate. Color provides a quick clue about urgency, but the symbol and accompanying message determine the correct response.
| Light Color | General Meaning | What You Should Do |
| Red | Potentially serious warning | Stop safely when the warning requires it |
| Amber or yellow | Fault or condition requiring attention | Check the message and arrange inspection as needed |
| Green | Feature is active or operating | Usually no action is required |
| Blue | Commonly indicates high-beam headlights or another active function | Check the indicator’s meaning |
| White | Information, system status, or a feature setting | Follow the displayed instructions |
Not every red light means the vehicle must be switched off immediately. For example, a seat belt reminder can appear in red without indicating mechanical damage. However, a red oil pressure warning, engine overheating warning, or serious brake warning should never be ignored.
Some lights illuminate briefly when you switch on the ignition. This is often part of the vehicle’s normal system check. If a warning remains on after starting the engine, check the owner’s manual to determine whether further action is necessary.

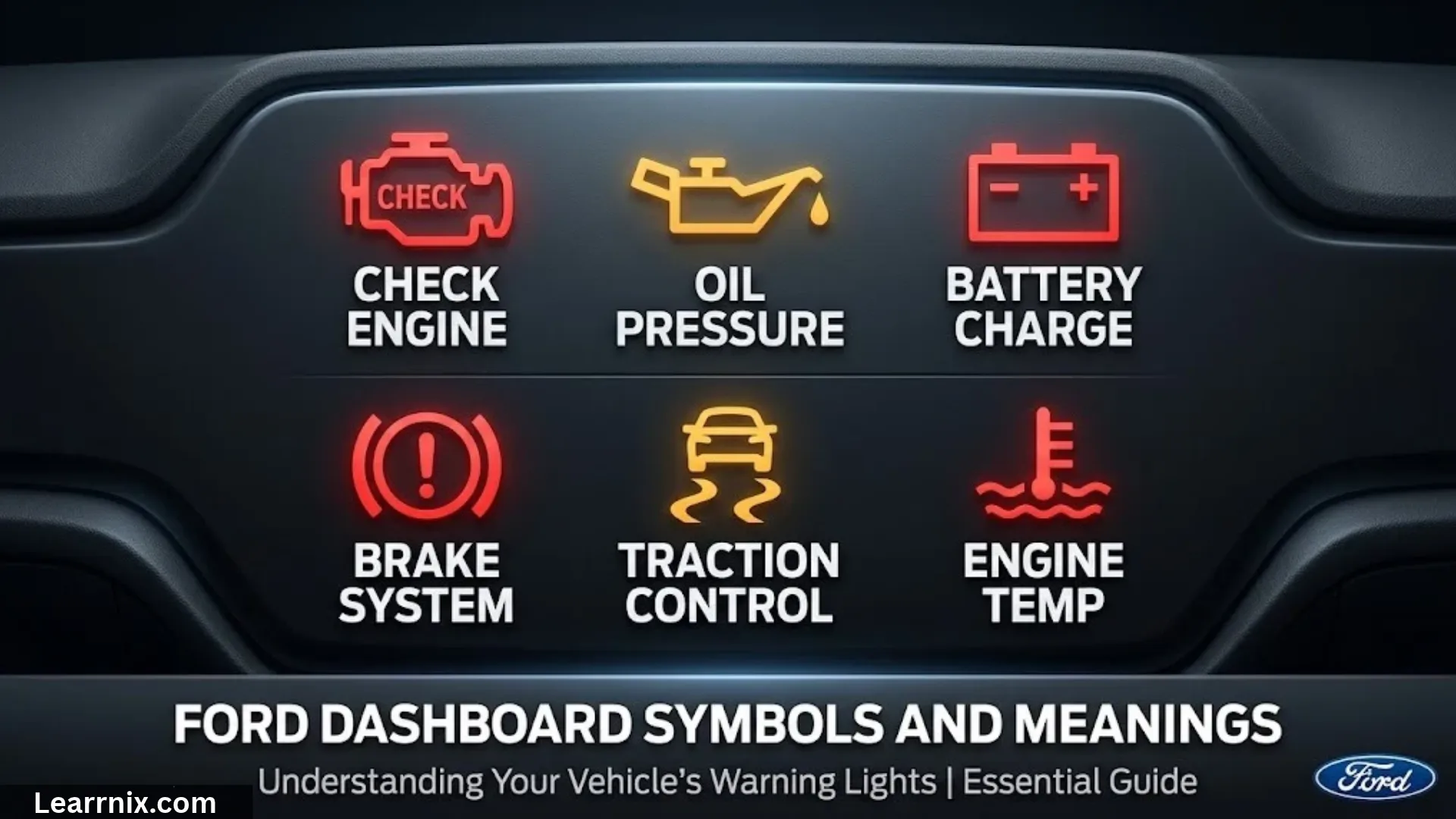

Common Ford Dashboard Symbols and Meanings
Many Ford vehicles share a core set of dashboard indicators. Understanding these common symbols gives you a useful starting point before looking at a particular model or year.
| Symbol Description | Meaning | Recommended Action |
| Red oil can | Engine oil pressure warning | Stop safely and switch off the engine |
| Engine outline | Check engine or emissions fault | Arrange diagnosis; act promptly if flashing |
| Battery outline | Charging system warning | Seek inspection of the charging system |
| Thermometer over waves | Engine coolant temperature warning | Stop safely if the engine is overheating |
| Circle with exclamation mark | Brake system warning | Check the parking brake and follow the warning message |
| ABS inside a circle | Anti-lock braking system fault | Arrange inspection and drive cautiously if braking remains normal |
| Horseshoe with exclamation mark | Tire pressure warning | Check tire pressure and condition |
| Person with a circle in front | Airbag or restraint system warning | Arrange a prompt safety-system inspection |
| Skidding car | Traction or stability control | Reduce speed if flashing; investigate a persistent fault light |
| Fuel pump | Low fuel level | Refuel soon |
| Seat belt figure | Seat belt reminder | Fasten the seat belt |
| Wrench | Powertrain or electronic-control fault on many models | Check the message and owner’s manual |
The same-looking icon can have different implications depending on its color, whether it flashes, and the message shown beside it. For example, a flashing stability-control indicator often means the system is actively correcting wheel slip, while a persistent warning may indicate a malfunction.
Red Warning Lights You Should Never Ignore
The oil pressure warning is one of the most important indicators on a Ford dashboard. It does not simply mean the engine needs an oil top-up; it warns that oil pressure may be too low to protect the engine properly. Stop safely and switch off the engine. Check the oil level only when it is safe to do so, and do not continue driving if the warning remains unresolved.
An overheating warning also requires immediate attention. Pull over safely, switch off the engine when appropriate, and allow it to cool. Never remove a hot coolant reservoir cap because pressurized coolant can cause serious burns.
Brake warnings require particular care. If the light stays on after releasing the parking brake, or the pedal feels soft, braking performance changes, or fluid appears to be leaking, do not continue driving until the vehicle has been assessed.
Amber Warning Lights That Need Attention
Amber warnings commonly indicate a fault that needs diagnosis or a condition that requires action. Examples include the check engine light, tire pressure warning, ABS fault, and certain powertrain indicators.
A steady check engine light may allow you to arrange a prompt diagnostic appointment if the vehicle behaves normally. A flashing check engine light can indicate a serious engine misfire, so reduce engine load and stop safely if it continues or the engine runs poorly.
A tire pressure warning should prompt you to check every tire, not just the one that looks low. If a tire is visibly damaged, rapidly losing air, or unsafe to drive on, do not continue the journey.

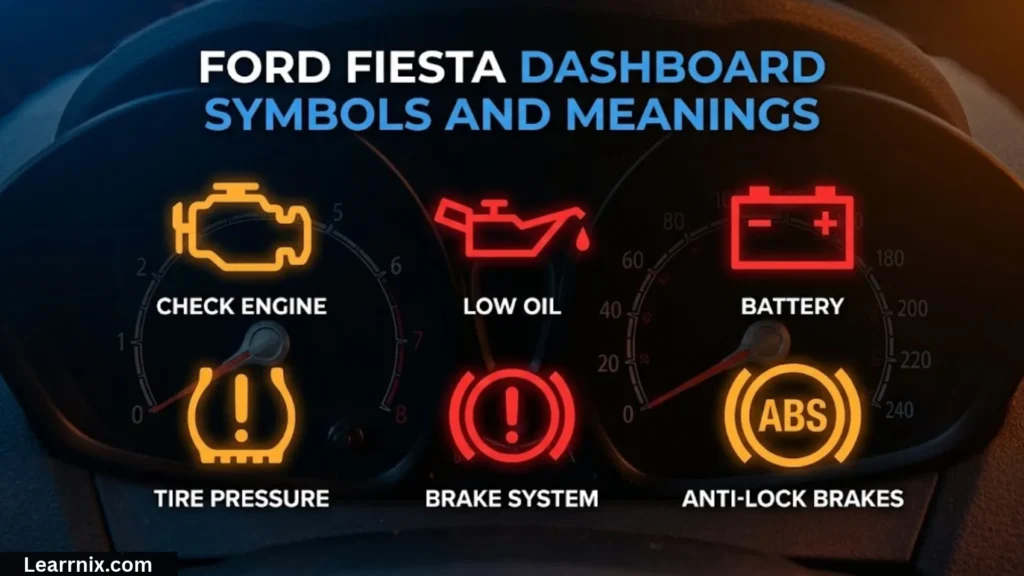

Ford Fiesta Dashboard Symbols and Meanings
The Ford Fiesta has been sold in several generations, so the dashboard symbols can differ between older and newer versions. A Fiesta from 2007, for example, may have a simpler instrument cluster than a 2018 or 2023 model.
Common Fiesta indicators include the engine management light, oil pressure warning, battery charging light, brake warning, ABS light, airbag warning, and tire pressure symbol on equipped versions.
The Fiesta may also display a power steering warning, door-ajar indicator, low fuel light, or traction control symbol. If the steering warning appears alongside unusually heavy steering, stop somewhere safe and arrange an inspection.
For diesel Fiesta models, the glow plug indicator may illuminate before starting. Wait for it to go out when instructed by the owner’s manual. A flashing engine warning, overheating alert, or persistent oil pressure warning needs more urgent attention.
2018 Ford Dashboard Symbols and Meanings
The 2018 Ford dashboard symbols depend on whether the vehicle is a Fiesta, Focus, Escape, Fusion, Explorer, or another model. Equipment and regional specifications also affect which indicators appear.
On vehicles equipped with a tire pressure monitoring system, the tire-shaped warning indicates that pressure may be low. The ABS light indicates a potential anti-lock braking fault, while an airbag light that remains illuminated can indicate a problem with the restraint system.
Some 2018 Ford models also offer lane-keeping assistance, parking sensors, and collision-warning features. Their indicators may show that a system is active, switched off, or temporarily unavailable.
If you see a wrench symbol, check the accompanying message before assuming it means routine maintenance. On many Ford models, it can indicate a powertrain fault. A diagnostic scan and the correct owner’s manual can help identify the issue.
Ford Ranger Dashboard Symbols and Meanings
Ford Ranger owners may encounter additional indicators related to four-wheel drive, diesel engines, towing, and off-road driving. These features vary by generation, market, and equipment.
A four-wheel-drive symbol usually shows the selected drivetrain mode or a change in progress. A diesel glow plug indicator signals preheating, while a diesel particulate filter warning can indicate that the exhaust filter needs attention.
Some diesel Rangers also have an AdBlue or diesel exhaust fluid warning. If the fluid is low, refill it according to the manufacturer’s instructions. Ignoring certain emissions-system warnings can eventually prevent the vehicle from restarting after it is switched off.
A trailer indicator can relate to trailer lighting or towing functions, depending on the equipment. If a warning appears while towing, check the displayed message and assess whether the trailer connection or vehicle system needs attention.
Never assume that a four-wheel-drive warning means the vehicle has successfully engaged the requested mode. Follow the instructions for your specific Ranger and avoid using an unsuitable drivetrain mode on the road.
2016 Ford Dashboard Symbols and Meanings
For a 2016 Ford, the most important step is to distinguish an ordinary status indicator from a warning that signals a fault. The same general symbol may have a different function across the Focus, Fiesta, Ranger, Escape, and F-150.
The red oil pressure light means the engine may not be receiving adequate lubrication. The battery symbol indicates a possible charging-system fault, while the coolant temperature warning signals overheating. Each requires a different response.
A flashing check engine light can indicate a misfire. Reduce engine load and stop safely if the warning continues or the engine runs roughly. A steady light still needs diagnosis, even if the vehicle appears to drive normally.
If the dashboard displays several warnings at once, do not immediately assume that each system has failed independently. Low system voltage or an electrical fault can sometimes trigger multiple alerts. Proper testing is needed to identify the underlying cause.
2007 Ford Dashboard Symbols and Meanings
Older Ford vehicles may use fewer digital messages, making it especially useful to recognize the basic warning lights.
The oil pressure, charging-system, brake, ABS, airbag, and engine management lights are among the key indicators to understand. A flashing indicator or unusual engine behavior may require a different response from a steady warning.
On a 2007 Ford, a battery light that remains illuminated while driving may indicate a charging-system problem. The alternator, wiring, drive belt, or battery connections may need inspection.
If the engine management light comes on, a mechanic can read stored diagnostic trouble codes to help identify the fault. Do not replace sensors or other components based only on the symbol.

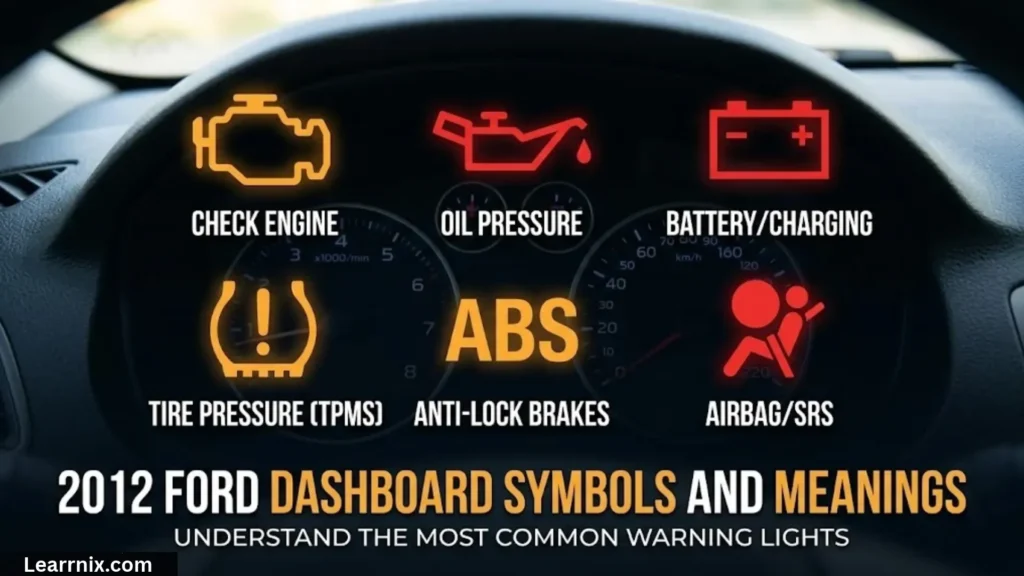

2012 Ford Dashboard Symbols and Meanings
A 2012 Ford may combine dashboard warning lamps with a basic information display. Depending on the model, messages can provide additional details about the problem.
The tire pressure warning calls for checking the tires against the recommended pressures. The ABS indicator warns of a possible anti-lock braking fault, and a stability-control light may flash when the system intervenes to help maintain traction.
A low fuel indicator is a reminder to refuel, whereas an oil pressure warning is a potentially serious engine alert. Learning these differences helps you avoid treating every dashboard light as equally urgent.
If the vehicle has recently had its battery disconnected or replaced, some systems may require a reset or recalibration according to the manual. Do not assume a persistent warning is harmless simply because recent maintenance has taken place.
2013 Ford Dashboard Symbols and Meanings
The 2013 Ford dashboard includes familiar warning lamps for the engine, braking system, airbags, battery, and vehicle stability. The precise design depends on the model and instrument cluster.
A power steering warning can indicate a problem with steering assistance. An airbag warning that remains on suggests that the restraint system needs checking. A door-ajar symbol means a door or another monitored opening may not be fully closed.
If the traction control light flashes while driving, it may indicate that the system is helping manage wheel slip. If it remains illuminated as a fault warning, check the manual and arrange an inspection.
When an unfamiliar symbol appears, note its color and whether it flashes. These details, along with any dashboard message, can help you identify the warning more accurately.
2016 Ford Dashboard Symbols and Meanings
If you are trying to identify a specific 2016 Ford warning light, start with the exact model and the message displayed on the instrument panel. The same model year can include different engine options, safety features, and dashboard layouts.
A wrench symbol on an equipped model can indicate a powertrain-related problem, while the engine-shaped light commonly relates to engine management or emissions. Neither symbol identifies a single failed part by itself.
For a persistent warning, a mechanic can use a suitable diagnostic scanner to retrieve fault codes and perform further tests. If the warning relates to braking, oil pressure, or overheating, follow the vehicle’s safety instructions rather than delaying action until a service appointment.
2017 Ford Dashboard Symbols and Meanings
The 2017 Ford dashboard may include conventional warning lamps alongside indicators for modern driver-assistance features.
A blind-spot monitoring indicator can alert you to a vehicle in a monitored area, while a lane-keeping symbol shows the status of lane assistance. These are generally feature indicators rather than direct engine warnings, although a separate message may report a system fault.
Other important symbols include the tire pressure warning, battery light, ABS indicator, airbag light, and check engine symbol. If the check engine light flashes or the vehicle loses power, reduce engine load and seek assistance.
For any persistent amber warning, check the owner’s manual and arrange diagnosis when necessary. Do not assume that a feature is working simply because its icon appears on the display.
Ford Dashboard Symbols and Meanings 2023
Newer Ford models may display warning symbols alongside detailed digital messages. These messages can help you distinguish a temporary limitation from a fault that requires repair.
For example, a driver-assistance system may become unavailable because a camera or sensor is obstructed. Checking for dirt, snow, or mud around accessible sensor areas may resolve the issue, provided cleaning is performed according to the manual.
A low tire pressure alert requires checking actual tire pressures. An engine warning requires a different diagnostic process, while a red brake warning may require you to stop driving.
Some 2023 Ford vehicles also have selectable drive modes, electronic parking brakes, and advanced cruise-control features. Their indicators vary by equipment, so use the model-specific manual instead of relying on a generic dashboard chart.
Ford Dashboard Symbols and Meanings 2025
The 2025 Ford range includes conventional petrol and diesel vehicles, hybrids, and electric models, depending on the market. As a result, some dashboards display engine-related symbols while others show additional battery or electric-drive information.
On petrol and diesel vehicles, oil pressure, engine temperature, brake, battery, and check engine warnings remain important. Diesel models may also show glow plug, diesel particulate filter, or AdBlue-related alerts.
Hybrid and electric vehicles may display high-voltage system, traction battery, charging, or power availability messages. These indicators should be interpreted using the manual for the exact vehicle. Do not attempt to service high-voltage components yourself.
A warning message that instructs you to stop safely should take priority over a general online explanation. When a critical warning appears, follow the displayed instructions and contact roadside assistance if necessary.
Ford Dashboard Symbols and Meanings 2022
The 2022 Ford dashboard varies across cars, SUVs, and pickup trucks. Some vehicles have traditional gauges, while others use digital displays to provide more information about the vehicle’s status.
A stability-control light that flashes often indicates active intervention to help maintain traction. A steady warning may mean the system is unavailable or has a fault. Likewise, a green cruise-control indicator commonly shows that the function is active, rather than signaling a mechanical problem.
The check engine light, ABS warning, tire pressure symbol, and brake warning need different responses. Read the accompanying message and consider how the vehicle is behaving before continuing your journey.
If several warning lights appear together, arrange proper diagnosis instead of clearing the alerts without identifying their cause.
Ford Dashboard Symbols and Meanings 2024
The 2024 Ford dashboard can include additional indicators for driver assistance, selectable driving modes, and electric or hybrid powertrains.
On equipped vehicles, a lane-keeping symbol may show that the system is active or unavailable. Adaptive cruise-control indicators communicate system status, while a collision warning may alert you to a potential hazard ahead. These features support the driver but do not replace attention to the road.
Electric and hybrid models may display battery charge or electric-drive warnings. A normal charging indicator is different from a message reporting a charging fault.
For conventional engines, familiar oil pressure, coolant temperature, brake, and engine management warnings remain essential. If a symbol is unfamiliar, identify the vehicle’s exact model and year before taking action.

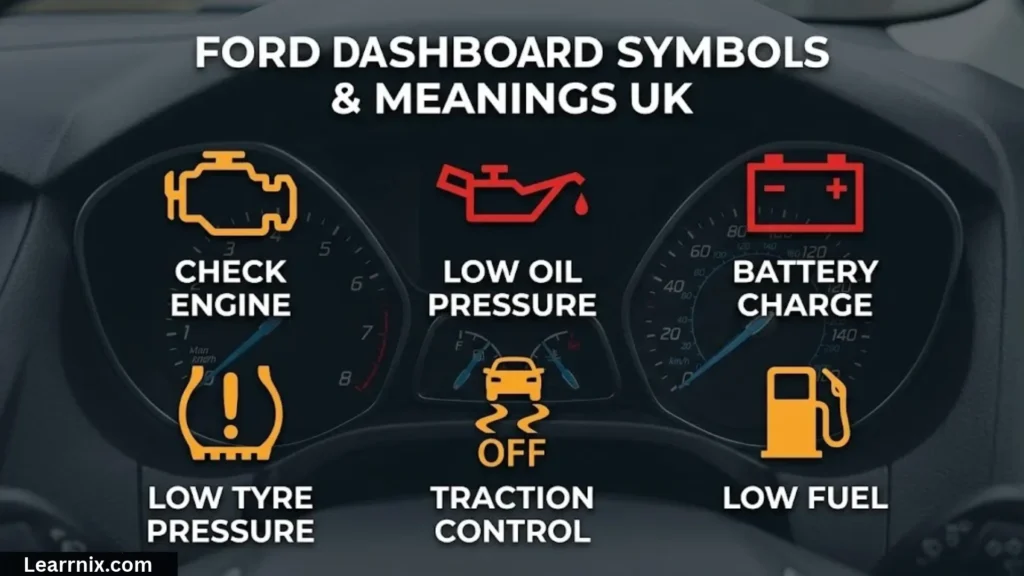

Ford Dashboard Symbols and Meanings UK
UK Ford drivers should interpret dashboard symbols using the owner’s manual for their specific vehicle and market. The meanings of common warning lamps are broadly similar across many markets, but equipment, wording, and symbol designs can vary.
Pay attention to the difference between normal indicators and faults. Green or blue lights often indicate an active function, while amber lights generally require checking. Red warnings can signal an urgent problem, although the exact response depends on the symbol.
UK drivers should also follow Ford’s recommended tire pressures, which are generally listed on the vehicle’s tire information label or in the manual. Do not substitute the maximum pressure printed on the tire sidewall.
For official guidance, use the Ford UK dashboard warning light guide and the For owner manuals page. Ford explains that dashboard lights can vary between models and over time, so the correct owner’s manual is the best source for interpreting an unfamiliar warning.
Frequently Asked Questions
What does the orange engine light mean on a Ford?
An orange engine light usually indicates a fault in the engine management or emissions system. If it stays on, arrange a diagnostic check. If it flashes, reduce engine load and stop safely if it continues or the engine runs poorly.
Can I drive my Ford with a dashboard warning light on?
It depends on the warning. Some indicators show normal operation, while certain amber warnings allow cautious driving to a service center. Red oil pressure, overheating, or serious brake warnings require immediate attention and may mean you must stop.
What does the wrench symbol mean on a Ford?
The wrench symbol often indicates a powertrain or electronic-control fault on equipped Ford models. Check the dashboard message and the owner’s manual to determine the recommended action. A diagnostic scan can help identify the underlying issue.
Why do several warning lights appear at once on my Ford?
Several warning lights may appear together because of low battery voltage, a charging-system fault, or another electrical issue. They can also indicate multiple unrelated faults. Have the vehicle checked rather than assuming every warning has the same cause.
Where can I find the correct Ford dashboard symbols for my model year?
Use the official Ford owner’s manual for your exact model, year, and market. The manual explains the relevant warning lamps and indicators. You can also consult Ford support or a qualified technician if the symbol remains unclear.
Conclusion
Ford dashboard symbols provide useful information about engine health, braking, tire pressure, electrical systems, and driver-assistance features. Learning their meanings helps you recognize normal indicators and identify warnings that need attention.
The Fiesta, Ranger, and other Ford models can display different symbols depending on their year and equipment. Older vehicles may have simpler instrument clusters, while newer models can provide more detailed messages and additional hybrid, electric, or driver-assistance indicators.
Always check the exact symbol and follow the instructions in your owner’s manual. When a warning indicates a serious fault, stop safely and seek professional assistance instead of risking further damage or compromising your safety.
